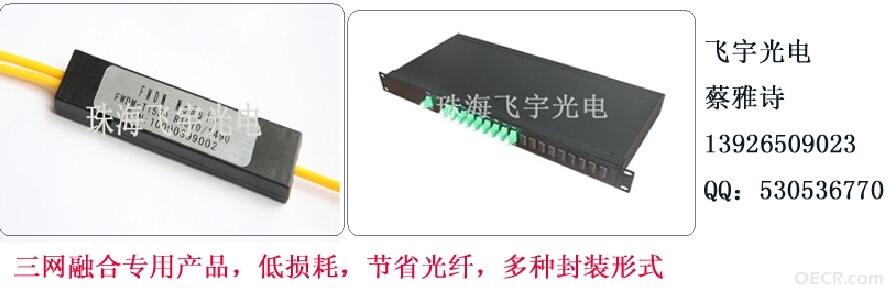

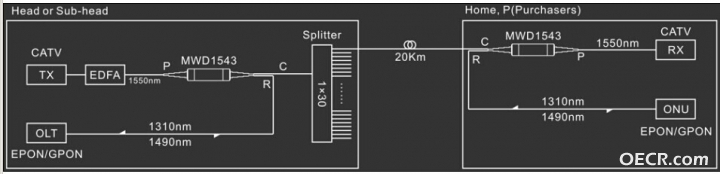

三网融合专用FWDM波分复用器应用

ceciopticres

Parameter        FWDM-T1550R1310/1490
Pass Band Wavelength Range (nm)        1540~1560
Reflection Band 1 Wavelength Range (nm)        1260~1360
Reflection Band 2 Wavelength Range (nm)        1480~1500
Insertion loss (dB)        Reflect Channel        ≤0.6
        Pass Channel        ≤0.8
Pass Band Rippler (dB)        <0.3
Isolation        Reflect Channel        >15
        Pass Channel        >30
Insertion Loss Temperature Sensitivity (dB/℃)        <0.005
Polarization Dependent Loss (dB)        <0.1
Polarization Mode Dispersion (ps)        <0.1
Directivity (dB)        >50
Return loss (dB)        >50
Maximum Power Handling (mW)        300
Operating Temperature (℃)        -10~+75
Storage Temperature (℃)        -40~+85
Connector Type        900um
Package Dimension (mm)        5.5*34
