求助:zemax中分光系统

ggll

<P>请问zemax中的分光系统怎么做啊(一半透过,一半90度反射)</P>
<P>哪位好心人能不能给我一个设计例子啊</P>
<P>在此先谢谢了!!!!!</P>

leo_kkcj

<P>我也是刚刚学的,抛砖引玉.我用的是NS Mode做的.</P>

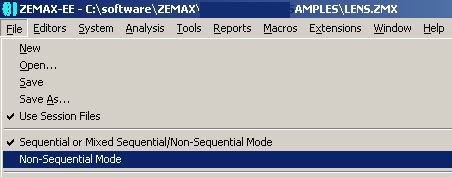

<P>NS Mode<br><img src="data/attachment/forum/dvbbs/2005-6/200562415573598278.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2005-6/200562415573598278.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /></P>

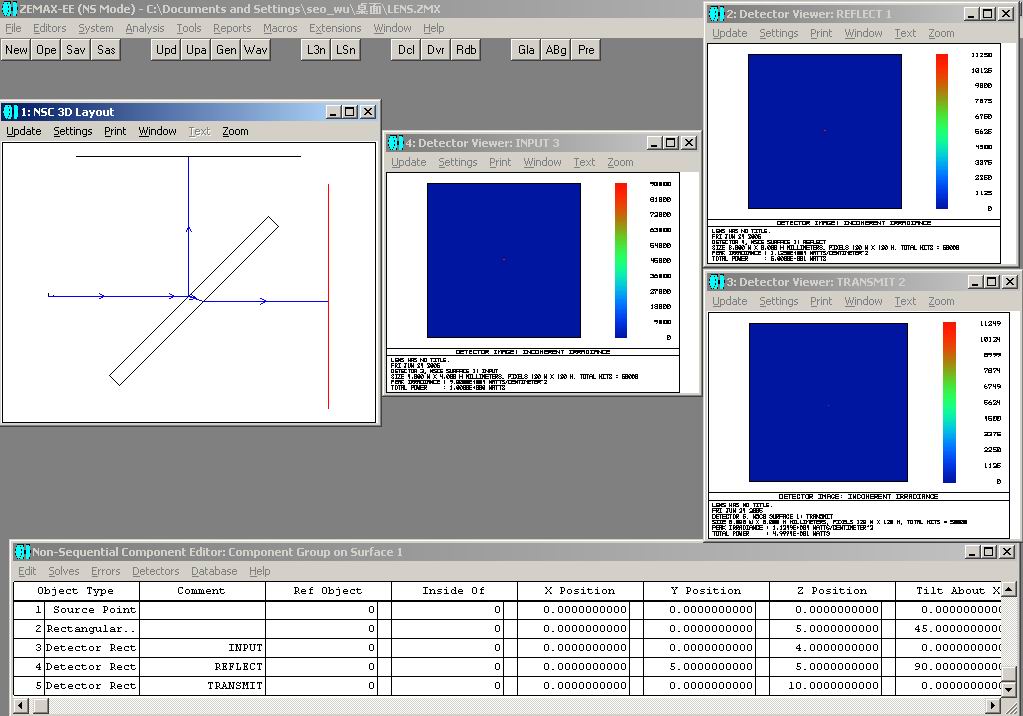

<P>做出来的Layout<img src="data/attachment/forum/dvbbs/2005-6/20056241661766531.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2005-6/20056241661766531.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /><br></P>

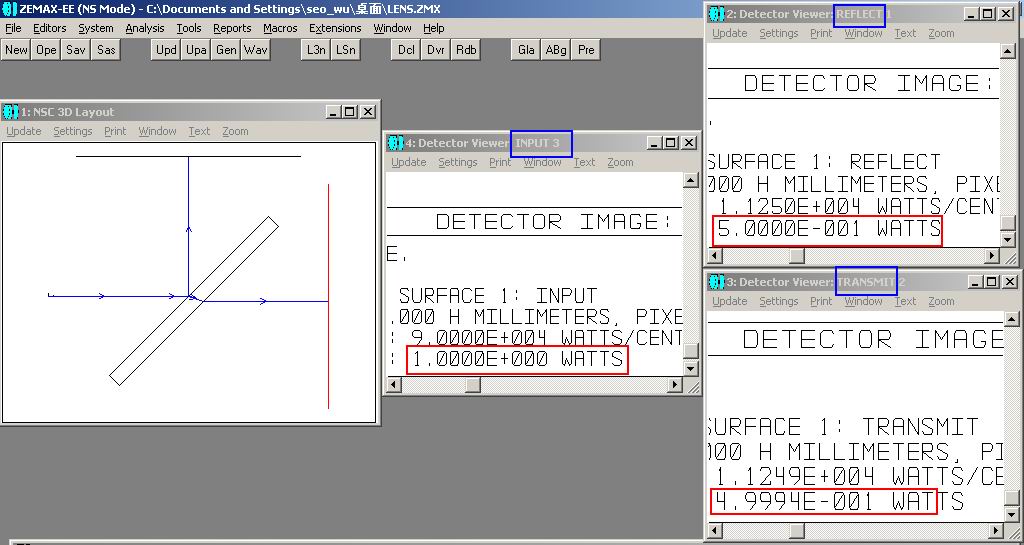

<P>结果:<br><img src="data/attachment/forum/dvbbs/2005-6/20056241558130026.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2005-6/20056241558130026.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /></P>
<P>zmx文件<FONT face=宋体>:[</FONT>upload=rar]viewFile.asp?ID=6819[/upload]<br></P>

leo_kkcj

<P><br></P>
<P>欢迎多多交流;</P>
<P><a href="mailtLeo_kkcj@163.com" target="_blank" >Leo_kkcj@163.com</A></P>
<P><a href="mailtSeo_Wu@asustek.com.cn" target="_blank" >Seo_Wu@asustek.com.cn</A></P>

leo_kkcj

<P>漏了一个Ses文件</P>
<P><BR></P>

guanchuchu

很有用，但是缺少重要的东西，就是材料以及是否要镀膜，希望回复，谢谢
