Q-switch 具体技术指标

lczhy00001

Q-switch 具体技术指标

Q-switch 具体技术指标

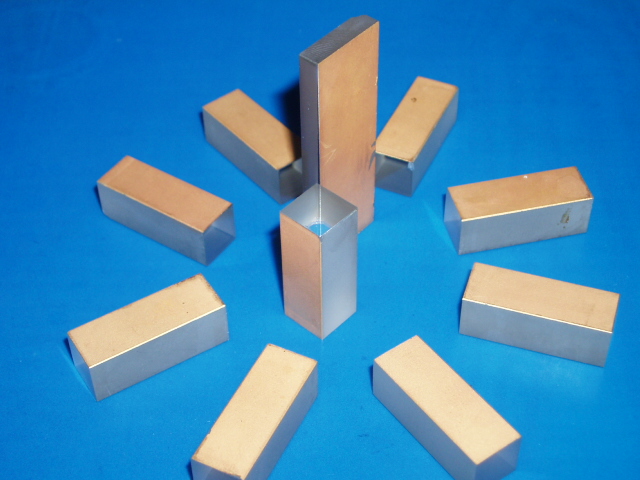

LiNbO3 Q-Switch Elements



Standard Dimension 9x9x25 or 10x10x20mm3 (other dimension is also available upon request)
Dimension ToleranceX & Y-axis: ± 0.1mm ; Z-axis: ± 0.3mm
Wavefront Distortion< l/4 @633nm
Orientation AccuracyX & Y-axis: < 10'; Z-axis: < 5'
Flatnessl/8 @632.8nm
Parallelism10"
Scratch/Dig Code10/5 per MIL-O-13830A
Chamfer< 0.5 mm at 45&ordm; ± 5&ordm;
AR-CoatingR < 0.2% @ 1064 nm
ElectrodesGold or Cr electrode on X-faces
Extinction Ratio> 400:1 @ 633 nm for f 6mm beam)

lczhy00001

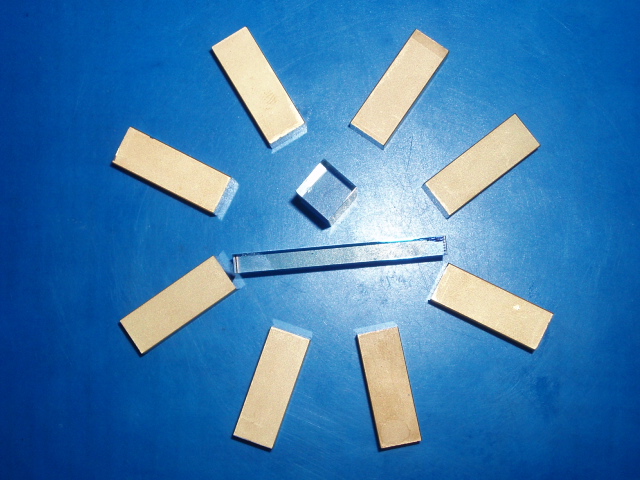

LiNbO3 Q-Switch Elements



Standard Dimension 9x9x25 or 10x10x20mm3 (other dimension is also available upon request)
Dimension ToleranceX & Y-axis: ± 0.1mm ; Z-axis: ± 0.3mm
Wavefront Distortion< l/4 @633nm
Orientation AccuracyX & Y-axis: < 10'; Z-axis: < 5'
Flatnessl/8 @632.8nm
Parallelism10"
Scratch/Dig Code10/5 per MIL-O-13830A
Chamfer< 0.5 mm at 45&ordm; ± 5&ordm;
AR-CoatingR < 0.2% @ 1064 nm
ElectrodesGold or Cr electrode on X-faces
Extinction Ratio> 400:1 @ 633 nm for f 6mm beam)

dgfoxzhao

做不做封装好的?只做到镀好金就卖啊?

lczhy00001

现在是镀好金,镀好增透就卖

chenjb1002

是声光还是电光的啊？

频率为多少啊？

匹配网络你们作吗？

接不接维修的啊？

lczhy00001

现有LN调制器:规格:

4*2.5*60mm,1.5*1.5*30mm,4*2.5*30mm,1.5*1.5*60mm调Q开关(铌酸锂)，规格：9*9*25，6*6*25,16*16*35 mm

lczhy00001

顶上去,

a. 4*2.5*60mm,1.5*1.5*30mm,4*2.5*30mm,1.5*1.5*60mm调Q开关(铌酸锂)，规格：9*9*25，6*6*25,16*16*35 mm

yydyyd

价格如何？有成套的LN Q开关吗？

高科技

我公司可提供Q开关驱动电源

oelb

LN Q开关？？？？？？
